Icron Ranger 2301

Manufacturer
Produced In
China

Product Description

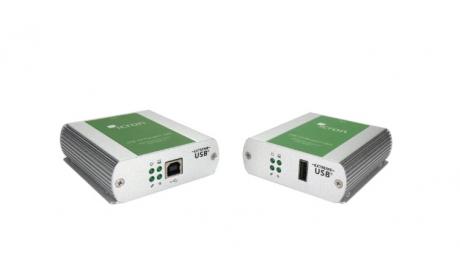

The Icron Ranger 2301 is a 1-port USB 2.0 extender that enables reliable USB 2.0 extension up to 100 meters (330 feet) over standard CAT 5e/6/7 cabling. Ideal for industrial, commercial, and medical applications, the Ranger 2301 delivers high-performance USB extension with plug-and-play simplicity.

Key Features

  • USB 2.0 throughput up to 480Mbps
  • Supplies up to 1 Amp to USB port
  • Operates with all USB controllers
  • Mass Storage Acceleration
  • Transparent USB extension
  • True plug and play; no software drivers required
  • Works with all major operating systems: Windows®, macOS™, Linux®, and Chrome OS
  • Direct Connect: Up to 100m (330 ft) over solid core CAT 5e/6/7
  • Maximum USB 2.0 Throughput: Local Extender Up to 480Mbps
  • Maximum USB 1.1 Throughput: Remote Extender Up to 12Mbps
  • Enclosure Material: Silver Anodized Aluminum
  • Certifications: FCC (Class B), CE (Class B), RoHS2/3 (CE), ICES-003 Issue 7,
  • Power Supply: 100-240V AC Input, 5V 3A DC Output
  • Warranty: 2-year

Product Code

Product Name

Add to Basket

Icron Ranger 2301 - Single-port USB 2.0 extender up to 100 meters over CATx cabling
Ranger 2301
Single-port USB 2.0 extender up to 100 meters over CATx cabling
