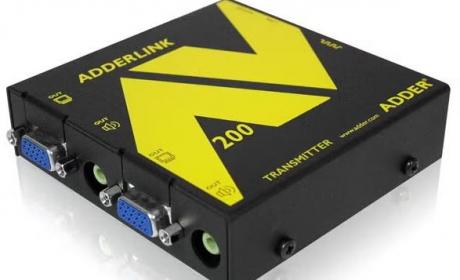

ADDERLink AV200 Audio Video Extender
Product Description
The AV200 series is supplied complete with ADDER DM (Display Manager) software. This advanced application makes controlling VDU power, video and audio possible from the transmitter, as well as allowing you to interrogate video panel status and dynamics.
The new range of audio video extenders from ADDER deliver high resolution crystal clear video and CD quality digital stereo audio across installations up to 2000ft in width, or 1000ft point to point. With full RS232 support video display panels can be controlled and interrogated remotely, making the AV200 series the ideal professional Narrowcast Digital Signage solution.
Note: *RS232C (Control) port required.
Key Features
- Crystal clear digital audio quality at 44.1kHz Stereo
- Crisp, sharp, fully saturated video quality even at 1000ft
- Resolution up to 1920x1080@60Hz
- Compact size
- Compact rack-mountable chassis for large installations
- Receiver units with fully adjustable de-skew ensuring maximum video quality
- Cascade transmitters to support up to 64 VDUs from a single source

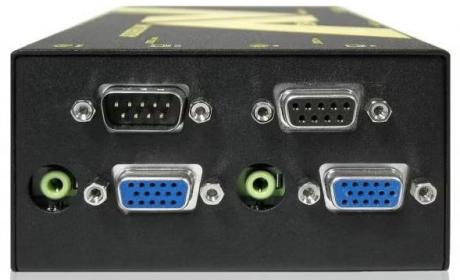

- Dual video/audio output on the receiver supports back to back monitors applications
- 1920x1080 at distances up to 100 metres/325 feet, 1280 x 1024 at distances up to 300 metres/1000 feet.
- Up to 300 meters/1000 feet using CATx (x=5,5e,6,7).
- Differential analogue signalling for video signals.
- Finely adjustable cable equalisation amplifiers enable the video sharpness and brightness to be independently adjusted using the dials on the side of the receiver units.

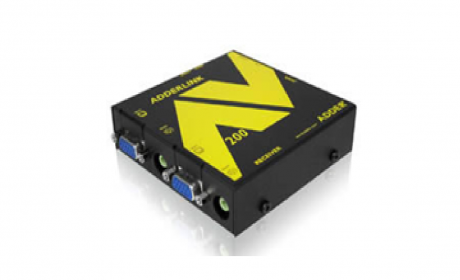

- The remote and local units are fitted with two indicators; red shows the presence of power into the module, green indicates the presence of a video input.
- Transmitted as digital signals to ensure high fidelity and low noise levels. Phase locked sampling clocks ensure that there are no unwanted clicks when no sound is being played.

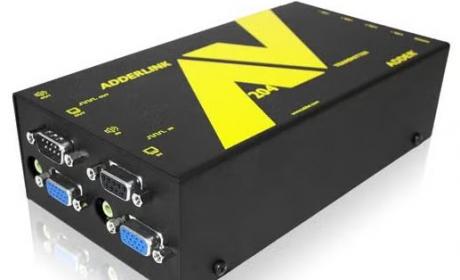

- Both the local (computer-end) and remote (display-end) units may be rack mounted in the ADDERLink AV Series rack mount chassis. The chassis enable 16 units (ALAV200T, 200R and 201R) or 8 units (ALAV204T and 208T to be mounted in 3U of 19-inch rack space. The units are rack mounted using the optional rack mount faceplate.
- All ADDERLink AV units are powered by an external 5.3V DC, 2A power supply with IEC power cable connection. A country specific power cord is provided. Alternatively 4 units can be powered using a 5.3V DC, 4amp power supply and the ADDER “Squid” cable.
- DDC signalling is supported to enable the computer to communicate with the local monitor and thus configure its video card for optimal operation.
