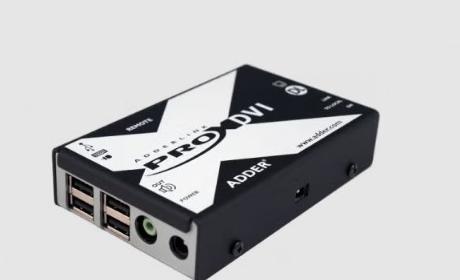

ADDERLink X-DVI PRO-DL Digital Video Extender
Product Description
Part of the ADDERLink X-DVI PRO range, the X-DVI PRO-DL high-performance, digital KVM (Keyboard, Video and Mouse) and USB extender enables you to locate your critical computing hardware in a secure and temperature controlled environment. Uncompressed digital video and audio is distributed in real-time and with zero latency via a Dual Link DVI video stream, allowing the user to maintain an at-the-PC experience. The USB 2.0 interface ensures compatibility with a wide range of USB devices.
- Dual Link resolutions: deliver uncompressed digital video with audio
- USB 2.0 Low and Full speed connection: to interface with a range of devices
- Exact content seen on the local monitor is distributed: up to 50m over a single CATx cable
- Energy efficient design: external power supplies are not needed
- X-DVI PRO-DL: enables single screen at 2560 x 1600@60Hz
Key Features
- Dual Link resolutions for pixel perfect digital video with real time control: using uncompressed video extension; no visible artefacts or latency are introduced allowing you to be certain of quality and control
- Distribution up to 50m over a single CATx cable: video, USB 2.0 (Low and Full speed) and audio all pass along a single cable, providing up to 50m of extension with resolutions up to 2560x1600@60Hz (distance dependent upon video resolution, CATx cable type, and number of connection intervals)
- Connect any USB interface device: utilising a unique method of USB communication, the ADDERLink X-DVIPRO extenders deliver the highest possible levels of USB compatibility. All USB 1.1 and 2.0 low/full speed devices are supported.
- HDMI video and audio extension capabilities: Digital audio for 8 channels of HDMI audio, supported simultaneously to analog audio
- Audio - The system delivers analog stereo audio (Line Out). 8 channels of HDMI audio are supported with sample sizes of 16, 20 or 24bits at 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, or 192kHz (simultaneously with the jack audio).
- Approvals / Compliance - CE & FCC
- Standards - DVI-D Interface – digital only the system supports resolutions to a maximum of 2560x1600 @60Hz. Hardware compatibility: All computers with DVI-D, USB and audio - requirement dependent.
- Cable Guidelines - Recommended cables are CAT7 shielded foiled twisted pairs: Daetwyler 7702 Flexible patch cable Daetwyler 7120 Bulk cable
Product Code
Product Name
Add to Basket
ADDERLink X-DVI PRO-DL Digital Video Extender
X-DVIPRO-DL
ADDERLink X-DVI PRO-DL Digital Video Extender
