AdderLink Infinity ALIF 2002 DVI Dual Head or Dual Link KVM Extender over IP
Product Description
As part of the ADDERLink INFINITY range, ADDERLink INFINITY ALIF2002 is a high performance DVI - USB KVM extender that enables you to locate your critical computing hardware in a secure and temperature controlled environment, isolated from the user work station.
The system works as a KVM Extender over IP or as a CPU interface Module & User Interface Module when used in conjunction with the Adder Infinity Manager to form a KVM Matrix system over IP with unlimited end points
Configurable as a Dual Head Single Link or Single Head Dual link unit, this extender provides pixel perfect video with minimal lag across a distance of up to 100 meters over CatX, 500 meters over Multi-Mode Fiber, up to 10km over Single Mode Fiber or to unlimited distance over LAN IP
Key Features
- The AdderLink INFINITY makes use of multiple video encode technologies devised by Adder to deliver the very best picture available. Adder encoding systems are spatially lossless, with 1:1 pixel mapping, so the digital video you receive is the same as the digital video leaving the remote computer.
- The AdderLink INFINITY uses optimal spatially lossless compression techniques to minimize network bandwidth usage and maximize the user experience. In most usage scenarios, with typical computer desktop applications, the AdderLink INFINITY uses remarkably little bandwidth. When it needs to deliver full screen motion video, it has the capability to process full screen moving video in real time.
- The received video colour is the same as the sent colour every time. There is never a loss of clarity with the AdderLink INFINITY. Because of this, colour controlled environments such as visual media or scientific imaging can collaborate in real time on projects, handing control across seamlessly to other group members.
- The AdderLink INFINITY enables you to Connect any USB human interface device from mice and keyboards through to graphics tablets, jog shuttles, joysticks and 3D explorers. Furthermore, most other USB devices can also be attached, such as Mass Storage devices. Most USB devices fall into a selection of USB device classes, specific types of USB device class can be enabled or disabled from your AdderLink INFINITY network. In secure environments for example, you may wish to ban the use of Mass Storage devices, this is a simple procedure through the A.I.M. System.

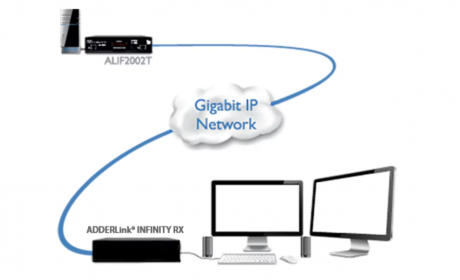

- You can configure your network topology to best suit your needs. If you simply want to extend one computer Tx to one user Rx, you can do so by connecting both Tx and Rx units via a low cost CATx cable. Distance is not limited - a standard network cable will deliver IP traffic up to 100 metres away. If you want to go further, simply add a network switch in to achieve an additional 100 metres. This can be done many times if you wish.
- The AdderLink INFINITY network is assumed to be a private network which you manage. As such, you can control maximum data rates generated by each Tx unit to ensure absolute stability.
- Because of the efficient manner in which AdderLink INFINITY constructs data for IP transmission, it is perfectly reasonable to make use of standard off the shelf wireless routing to connect either Rx or Tx units to your network. Typical desktop applications (word processing, datasheet etc) will use very little bandwidth.
- The AdderLink INFINITY units can be rack mounted, desktop mounted, wall mounted or attached to the back of your monitor using an optional VESA mounting carriage.

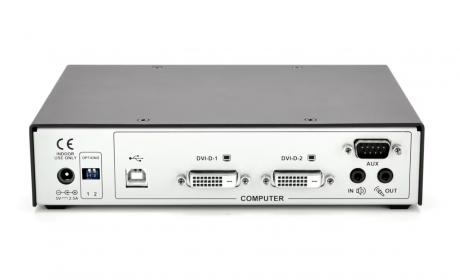

- The AdderLink INFINITY features full DVI connectivity. DVI delivers native digital video signals from your computer to your digital panel (LCD for example) without the need to convert signal types from the digital domain. By delivering native digital video throughout the AdderLink INFINITY network, you can be assured of accuracy on each and every pixel.
- The AdderLink INFINITY uses USB 2.0 (20 Mbs)connectivity to interface with your keyboard and mouse, and any other peripheral you wish to use. USB is the most broadly used computer peripheral interface standard available.
- AdderLink INFINITY delivers crystal clear stereo audio digitally across the network. This ensures continuous fidelity and channel separation between the Tx and Rx units, or even in Multicast environments.
- RS232 can be passed between the units to a maximum baud rate of 115,200. RS232 is a point to point connection technology and cannot be multicast.
