Aten CS1742
Product Description

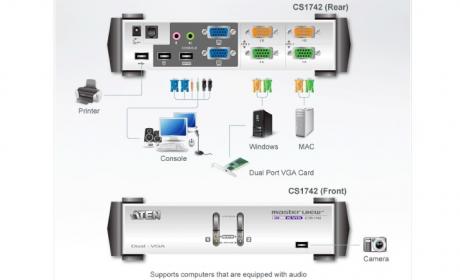

The Aten CS1742 VGA Dual-View USB KVM Switch brings dual head video functionality to ATEN's USB KVM switch technology. Now, two dual-display computers can be accessed and controlled from a single console that consists of a USB keyboard, USB mouse, and two VGA, SVGA, or Multisync monitors.
In addition, the CS-1742 incorporates a two port USB hub that allows each of the computers to share any USB peripherals connected to the hub on a one computer at a time basis. Recognizing the importance of sound, the switches are also audio enabled. A single microphone can provide audio input to each of the computers, and you can listen to the audio output of each computer on a single set of speakers (on a one-at-a-time basis).
Key Features
- One console controls two computers
- Additional VGA display channel provided for dual display of each computer
- Additional two USB ports for USB device sharing between two connected computers
- Audio jacks provided for speaker and microphone sharing
- Independent switching of KVM, USB, and audio
- Easy to install - no software required - connecting cables is all it takes
- Easy to operate - computer selection via push button switches or hotkeys
- Auto Scan function to monitor computer operation
- Hotkey selection for OS and keyboard language
- LED display for easy status monitoring
- Caps Lock, Num Lock, and Scroll Lock, states are saved and restored when switching
- Hot pluggable -add or remove computers for easy maintenance
- Firmware upgradable
- Keyboard and mouse emulation for error free booting S
- upports Windows 98SE or higher, Mac OS 8.6 or higher, SUN Blade 2000/100, (Sun Solaris 8 or higher) Linux and Unix
- Supports multimedia USB keyboards Supports Mac & Sun keyboards
- Supports all mice with native driver installed
- Supports Logitech and Microsoft wireless keyboards and mice
- Superior video quality - up to 2048 x 1536; DDC2B
