Aten KL1516A

Get a Quote
Manufacturer
Produced In
Taiwan
Download Aten KL1516A Data Sheet

Product Description

The Aten KL1516A Dual Rail LCD KVM Switch is a control unit that allows secure access to 16 computers from a single KVM (keyboard, video, and mouse) console. It consists of an integrated 17" or 19" LCD monitor, keyboard, and touchpad mouse in a 1U rack-mountable retractable sliding housing.

VGA, DVI, HDMI & DisplayPort video with PS/2 or USB control support

The LCD and keyboard/touchpad modules slide independently of each other. To maximize space in your data center, the keyboard/touchpad module slides back to “ hide away ” when not in use, while the thin profile LCD monitor rotates back – flush against the rack – allowing convenient monitoring of computer activity.



Key Features

  • Integrated KVM console with 17 or 19 inch screen keyboard & mouse
  • A single console controls up to 16 computers
  • Daisy chain up to 15 additional KVM switches to control up to 128 computers

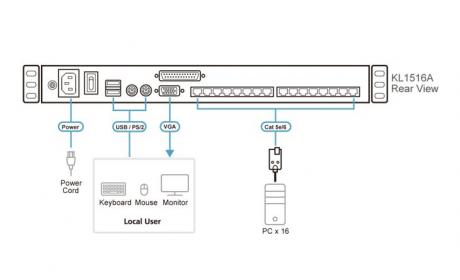

  • Space-saving RJ-45 connectors and Cat 5e/6 cabling
  • Extra console port manage computers in the LCD KVM switch from an external console (monitor, USB or PS/2 keyboard, and USB or PS/2 mouse)
  • Multiplatform support: PC, Mac, Sun and Serial
  • Supports external USB mouse
  • Dual Rail housing is slightly less than 1U with top and bottom clearance for smooth operation in 1U of rack space
  • Dual Rail 17“ LCD monitor slides independently of the keyboard/touchpad
  • LCD module rotates up to 120 degrees for a more comfortable viewing angle
  • End session feature administrators can terminate any running session
  • Port Share Mode allows multiple users to gain access to a server simultaneously
  • Event logging and Windows-based Log Server support
  • Firmware upgradeable
  • Easy computer selection via pushbuttons, Hotkey Mode, OSD (OnScreen Display), and Browser-based GUI
  • Multiplatform client support (Windows, Mac OS X, Linux, Sun)
  • Remote authentication support: RADIUS, LDAP, LDAPS, and MS Active Directory
  • Configurable user and group permissions for server access and control
  • Message board feature allows logged in users to communicate with each other
  • BIOS-level access

Product Code

Product Name

Add to Basket

Aten KL1516A 17 or 19 inch rack Mount Console with integrated 16 port KVM switch. VGA, DVI, HDMI or DisplayPort with PS/2 or USB control Support
KL1516AM
17" Dual Rail Rack mount console with keyboard and mouse & integrated 16 port KVM switch

KL1516AN
19" Dual Rail Rack mount console with keyboard and mouse & integrated 16 port KVM switch
