Smart AVI RK-DVX200 DVI‑D Extender

Get a Quote
Manufacturer
Produced In
USA
Download Smart AVI RK-DVX200 Datasheet

Product Description

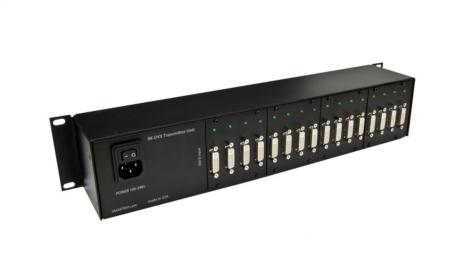

The RK-DVX200 extends DVI-D signals up to 225 feet over Cat6 23AWG STP cabling and supports configurations of 4×4, 8×8, or 16×16. It consolidates multiple extenders into a single rack-mountable unit, providing up to 16 inputs and 16 outputs without requiring separate power adapters for each channel.

Key Features

  • Top Image Quality at all Resolutions
  • Video Resolutions up to 1920×1200 @ 60Hz
  • User-Selectable: DCC Information Used From the Remotely-located Monitor, From the Local Monitor or From an Internal DDC Table
  • Distances of 225 Feet Using Cat6 23AWG STP Cables
  • Compatible With all Operating Systems
  • Compatible With all Major KVM Switches
  • Multiple Rack Mounting Option

Product Code

Product Name

Add to Basket

Smart AVI RK-DVX200 DVI‑D Extender
RK-DVX-TX4S
Powered Rack/Chassis with DVI-D CAT6 STP Transmitter, 4 Card Package

RK-DVX-TX8S
Powered Rack/Chassis with DVI-D CAT6 STP Transmitter, 8 Card Package

RK-DVX-TX16S
Powered Rack/Chassis with DVI-D CAT6 STP Transmitter, 16 Card Package

DVX-RX200S
DVI-D Receiver over Cat6 STP

DVX-TX200S
DVI-D Transmitter over Cat6 STP
