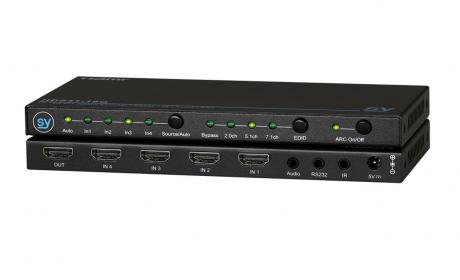

SY Electronics HDS41-18G KVM Switch
Product Description
The HDS41-18G is a 4x1 4K 18G HDMI Switcher, compatable with all resolutions up to 4K 60 4:4:4. Easily de-embed the audio via L/R analogue or optical TosLink. This unit also supports ARC (Audio Return Channel), CEC Pass Through, HDCP, and EDID management. Auto Switching for easy input selection. Control is available via RS232, IR and front panel.
Key Features
- Inputs and Outputs - HDS41-18G has four HDMI 2.0 18G Inputs and a single HDMI 2.0 18G Output.
- Control - The switcher can be controlled manually from the front panel, from the included IR remote controller, or via the RS232 interface.
- Auto & Manual Switching - A high quality video switcher with both manual and auto selection modes
- CEC – Pass through of all CEC commands from input to Display.
- EDID - Choose between onboard EDID presets, or read the EDID of a connected display. Full EDID management via Serial commands, and quick EDID Audio settings via front panel button or the IR remote.
- HDCP – Serial commands let you choose HDCP version 1.4, 2.2 or Cascade mode.
- Audio De-embedding – A De-embedded audio signal can be returned back from the Display to the Audio output
- • HDMI 2.0, 4K60 4:4:4 (18Gbps) switcher
- 4x HDMI inputs, and 1x HDMI output
- De-embedded L/R audio – Analogue & Digital Out
- Auto/Manual selection options
- Extensive EDID management
- Control: Front panel, IR, RS232
Product Code
Product Name
Add to Basket
SY Electronics HDS41-18G KVM Switch
SY-HDS41-18G
4K 18G HDMI 4x1 Switcher
