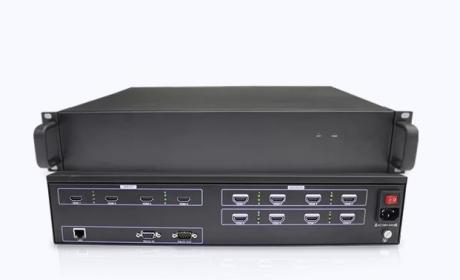

iSEMC VKE Series Video Wall Controller

Get a Quote
Manufacturer
Produced In
China

Product Description

VKE video wall controller is professional video image processing product which is based on the development of multi-windows no frame tearing LED and LCD display control technology.

Adopt RS232+LAN control method, and configure HDMI input/output interface, support up to 128 scene save and recall,to meet a variety of professional system application requirements.

Key Features

  • Full hardware FPGA architecture, no embedded operating system, high speed core computing mechanism, excellent image processing performance
  • Support LCD, LED splicing screen display;
  • Support seamless switching, no black screen, stuck screen, jitter, tearing and other phenomena during the switching;
  • Input supports maximum resolution of 1920x1200@60hz;
  • Support resolution customization output, the maximum resolution is 1920x1200@60hz, and support up to 2560 pixels width, up to 1920 pixels height for LED
  • Control mode: RS232 serial port and LAN network port;
  • Serial port commands can realize scene calling, scene saving, scene polling, signal switching, query and setting IP;
  • Support input signal source OSD function, it's able to set character font, size, color,transparency, position;
  • Support real-time detection of all input and output signals, to observe and detect the access status;
  • Supports arbitrary windowing, overlaying, roaming, splitting, zooming, stretching and cropping on the screen;
  • Support picture-in-picture, overlay, multi-screen display, large-screen splicing functions;
  • Support up to 2 windows on single screen;
  • Support scene management, such as scene save, scene call, scene preview, scene polling;
  • Support splicing configuration import and export;
  • Supports cropping and display of any position of the signal source, the same signal can be cropped four times;
  • Support preset windowing mode, flexible call;
  • Support online upgrade of the whole machine.
  • Hybrid plug-in structure: Higher flexibility to adapt to different project needs.
  • No embedded operating system: Provides higher performance and lower power consumption.
  • Internal self-built core computing mechanism: More cost-effective, providing faster response time and specialized functions.
  • Excellent image processing performance: Image signal full hardware point-to-point capability, real-time lossless.

Product Code

Product Name

Add to Basket

iSEMC VKE Series Video Wall Controller
VKE0404
Input: 4; Output:4

VKE0408
Input: 4; Output:8

VKE0412
Input: 4; Output:12

VKE0808
Input: 8; Output:8

VKE0812
Input: 8; Output:12
