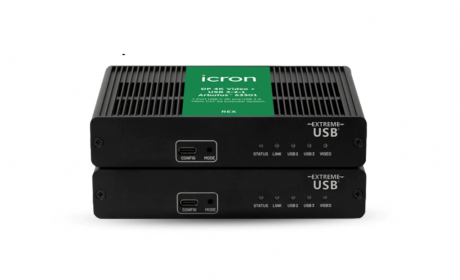

Icron Arbutus 63301 REX/LEX

Product Description

The Icron Arbutus 63301 is an all-in-one video and USB extension system. Utilizing a single USB-C port, the 63301 can extend 4K video and USB 3 over a CAT 6a cable offering a true one cable extension solution.

Unique to this model is the ability to support DP Alt mode on a USB-C connection supporting up to 4Kp60 4:4:4 simultaneously with USB 3 5Gbps. Within USB all transaction types are supported with no hub tiers consumed. The Arbutus 63301 extends up to 100m point-to-point with DC Power applied at the remote end.

Key Features

  • DP Alt mode up to 4Kp60 4:4:4 at 2 lanes HBR3
  • HDCP 2.2 support
  • 1Gbps Ethernet pass-through
  • 115200 baud RS232 pass-through
  • Supports all USB 3, 2, and 1.1 devices simultaneously up to 5Gbps
  • Extends USB 3 and 4K video up to 100m over CAT 6a or better cabling
  • The REX (remote extender) can power a single USB-C device up to 15W (5V 3A)
  • No USB hub tiers consumed (hubless)

Product Code

Product Name

Add to Basket

Icron Arbutus 63301 - 1-Port USB-C 4K and USB 3 5Gbps, 100m CAT 6a Extender
Arbutus 63301 REX
1 Port USB-C 100m CAT6a USB-C 4K +USB 3 Extender REX, Black, 100-240V Power Adapter

Arbutus 63301 LEX
1 Port USB-C 100m CAT6a USB-C 4K +USB 3 Extender LEX, Black, 100-240V Power Adapter
