The ADDERLink XD150 high-performance KVM (Keyboard, Video, Mouse) extender enables you to locate your critical hardware in a secure and temperature-controlled environment, away from the user workstation, whilst maintaining the original user desktop experience. Extension of high-resolution video, USB 2.0 and audio signals is complemented with support for a wide range of USB devices.

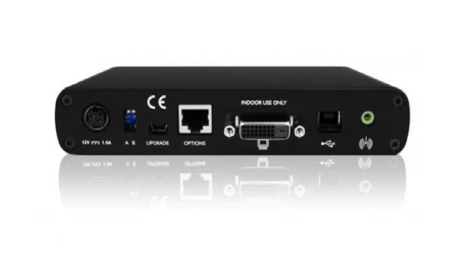

Adderlink XD150 DVI KVM Extender
Product Description
Key Features
- Extension Distances: flexible resolution versus extension distance options, ranging from 150m (500ft) extension distance for a single 1920 x 1080 screen to 100m (330ft) extension distance for a single 1920 x 1200 screen
- Transparent USB 2.0 (Low, Full, High Speed): for a whole range of USB devices including keyboards, mice, tablets, touch screens and mass storage devices, connected via the built-in 4-port USB hub
- Perfect digital video, real time control: uncompressed video extension with every pixel of every frame transferred with zero loss and in real-time
- Single CATx extension cable; shared by video, USB 2.0, audio and RS232 signals; RS232 can be passed between the units to a maximum baud rate 115K2 via the options port. Adder’s RC4 remote key switch is also supported
- Plug and Play: straightforward installation with no need for extra drivers or software
- Locking power connectors: locking 3 Pin DC jack with 2 power adaptors included
- CD quality analog audio: stereo channel 16bit sampled at 44.1kHz is available to transfer stereo audio from local to remote for Line Out
- Intelligent operation, compatibility and future-proofing: EDID (Extended Display Identification Data) allows the true characteristics of the monitor to be passed back to the computer; KVM switch mode for optimal KVM device compatibility; complete system is flash upgradeable from the computer end
- Space-saving rackmount kit: easy-access 19” rack mounting kit with two units per 1U of rack space
Product Code
Product Name
Add to Basket
Adder link XD150 DVI-USB 2.0 KVM extender kit over CatX
XD150
Adderlink DVI-USB 2.0 KVM extender kit over CatX
