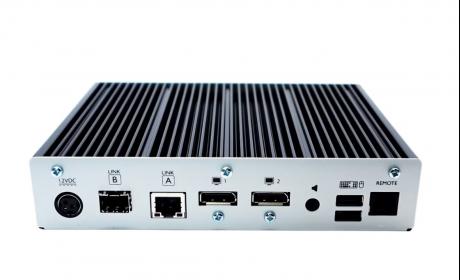

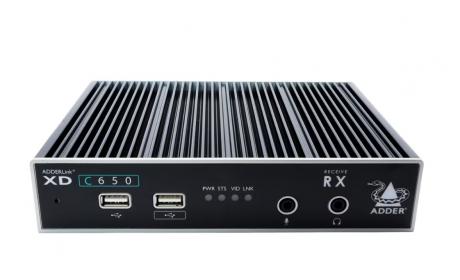

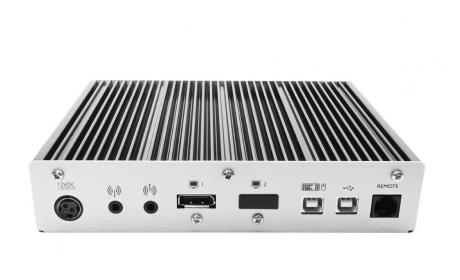

ADDERLink XD C650 KVM Extender

Get a Quote
Manufacturer
Produced In
United Kingdom
Download ADDERLink XD C650 Transmitter
Download ADDERLink XD C650 Receiver

Product Description

A high-performance KVMA extender that is designed to provide reliable and real-time access to critical computers while maintaining the same user desktop experience. Developed for enterprise organizations and high-pressure control rooms, it combines the simplicity of true plug and play and high-performance 4K KVM extension for superior functionality and flexibility.

Key Features

  • Quad-Head High-Definition Video - Supports quad-head 1920x1200@60Hz or single head 4096x2160@60Hz (DCI 4K60). Quad-head enabled over a single cable using DisplayPort 1.2 Multi-Stream Transport (MST) technology.
  • Up to 4km Extension - Supports both copper and fiber interfaces. Provides a range of up to 100m/328ft over a CAT6 cable link, and up to 4km/2.5 miles over an optical fiber link (Fiber SFP modules sold seperately).
  • Emulated and Hi-Speed USB 2.0 - USB 2.0 emulation ensures reliable connection of full and low speed HID devices (mouse or keyboard). Mass storage devices and isochronous devices, such as webcams and audio headsets can also be used through the transparent USB 2.0 Hi-Speed port.
  • Plug and Play - Uses a low-latency point-to-point protocol over a single CATx or fiber cable that works as soon as it is connected. No network set-up, driver or software is required.
  • Digital Audio over DisplayPort - Supports two channels of 24-bit, 192kHz sampled PCM audio over the DisplayPort connection
  • Analog Audio - Plug analog line in/out and headphones directly into the receiver. Audio is transmitted as bi-directional stereo 24-bit/96kHz using either an analog or USB connection to the host
  • Monitor Flexibility - EDID management allows the monitor capabilities to be passed back to the host computer for optimum compatability. Additionally, a local monitor may be connected at the transmitter side
  • Serial communications - RS232 can be passed between the units to a maximum rate of 115200 baud with RTS/CTS flow control

Product Code

Product Name

Add to Basket

ADDERLink XD C650 KVM Extender
XD-C650P-DP
AdderLink XD - HD Quad Head Transparent USB 2.0 Extender Pair with UK mains cables
