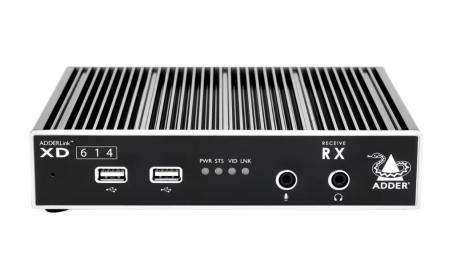

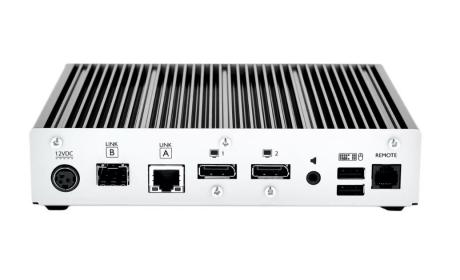

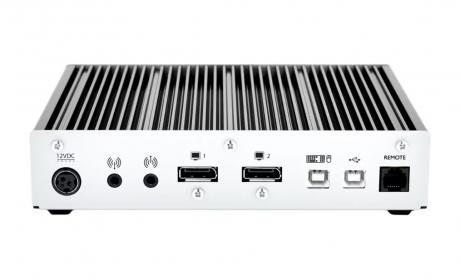

ADDERLink XD614 Displayport HD Quad-head KVM extender
Product Description
The ADDERLink™ XD614 is a high-performance KVMA (Keyboard, Video, Mouse and Audio) extender that is designed to provide reliable and real-time access to critical computers – regardless of the location, whilst maintaining the same user desktop experience.
Developed for enterprise organizations and high-pressure control rooms, it combines the simplicity of true plug and play and high-performance HD KVM extension, resulting in superior functionality and flexibility in a cost-effective, reliable and straightforward solution.
Key Features
- Quad-Head High-Definition Video: Supports quad-head 1920x1200@60Hz or single head 4096x2160@60Hz (DCI 4K60). Quad-head enabled over a single cable using DisplayPort 1.2 Multi-Stream Transport (MST) technology.
- Up to 4km Extension: Supports both copper and fiber interfaces. Provides a range of up to 100m/328ft over a CAT6 cable link, and up to 4km/2.5 miles over an optical fiber link (Fiber SFP modules sold seperately).
- Emulated USB 2.0: Emulation ensures reliable connection of up to four full and low speed HID devices, from mouse and keyboards through to graphics tablets and jog shuttles.
- Plug and Play: Uses a low-latency point-to-point protocol over a single CATx or fiber cable that works as soon as it is connected. No network set-up, driver or software is required.
- Digital Audio over DisplayPort: Supports two channels of 24-bit, 192kHz sampled PCM audio over the DisplayPort connection.
- Analog Audio: Plug analog line in/out and headphones directly into the receiver. Audio is transmitted as bi-directional stereo 24-bit/96kHz using either an analog or USB connection to the host.
- Monitor Flexibility: EDID management allows the monitor capabilities to be passed back to the host computer for optimum compatability. Additionally, a local monitor may be connected at the transmitter side.
- Serial communications: RS232 can be passed between the units to a maximum rate of 115200 baud with RTS/CTS flow control.
Product Code
Product Name
Add to Basket
ADDERLink XD614
XD614P-DP
ADDERLink HD quad-head extender
