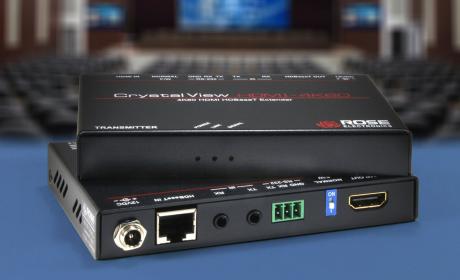

Rose Electronics CrystalView EX HDMI Multi

CrystalView EX HDMI Quad extender supports HDMI graphic interfaces in an uncompressed video format with a resolution up to 3840 x 2160. This full speed uncompressed video data transfer format prevents picture corruption and frame drops. The extender will maintain a smooth and clear picture even when displaying video in the highest resolution up to a distance of 330 feet (100m) over a CATx cable.

It also extends USB keyboard and mouse signals. Using enhanced USB emulation, a wide range of USB HID and USB 2.0 devices are supported. 3 USB ports are available on the receiver unit, with the capacity to expand the number of ports to 30 by using USB hubs. Each USB port has 500 ma of power for USB devices requiring higher power to operate.

CrystalView EX HDMI Quad is available in dual, triple, or quad-head models. The USB is transmitted together with the first video signal. Each video output requires a separate CATx cable.

A Quad-Rack version of this product is available that includes two, three or four independent CrystalView (HDMI+USB) extenders within a single 1U 19" rackmount chassis.
