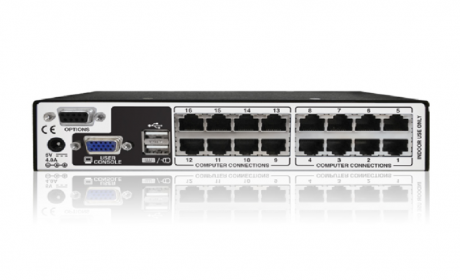

Adder View AVX 5016 - 16 port KVM Switch over IP

Get a Quote
Manufacturer
Produced In
United Kingdom
Download Data Sheet

Product Description

The AdderView AVX 5016 IP is the culmination of Adder's KVM over IP expertise to date. This new device offers 4 non blocking simultaneous IP connections together with a local port (5 separate users), and allows the user to control 16 separate devices. The AVX5016 IP is very small and compact enabling you to fit two units side by side to support 32 computers and 10 sessions in just 1U of rack space.

Using Adder's CAM modules, you can connect the switch via CAT5e cable to any type of server including PC, Mac and Sun. Country code reporting, DDC and continuous keyboard and mouse emulation further ensure faultless operation across your unique installation.

SERIAL CONSOLE SERVER (SCS):

The AVX5016 IP can also be used as a serial console (sometime known as a terminal server) simply by attaching the CATX-CONSOLE computer access module. This gives you out of band access to target command line interface (CLI) as well as console access to network switches. What makes the AVX5016 really unique is that you can mix as many of the 16 ports for use with either serial console or keyboard-video-mouse. This makes the AVX5016 one of the most flexible KVM over IP products on the market today.



Key Features

  • Allows 4 simultaneous global users to connect via IP to any of the 16 connected devices.
  • Direct connection for 1 local user to connect straight into the switch.
  • Authenticate users against your existing LDAP infrastructure. This feature can be enabled and disabled.
  • Integrated RS232 gives you the ability to control other external devices such as power management devices.
  • Ecopulse powers down unnecesary circuits when not required to reduce power requirements. Over the life of the product this will save significant power resources.
  • This enterprise grade KVM over IP switch employs AES128 bit encryption and RSA2048 authentication ensuring your control system remains secure at all times.
  • The AVX5016 IP allows you to configure 16 separate users internally with unique access privileges all of which are stored within the switch.
  • Adder's continuous improvement policy further ensures your system against future hardware changes - Adder offers free firmware updates for the life of the product. Furthermore, Adder's open architecture design philosophy will not tie you in to specific manufacturer's equipment.
  • Network management software, automating the task of managing your network control hardware.

Product Code

Product Name

Add to Basket

Adder View AVX5016 - 16 port KVM Switch over IP 1 Local & 4 Remote users over IP
AVX5016IP
Adder 16 port KVM Switch over IP 1 Local & 4 Remote users
