Apantac CRESCENT 4K/UHD KVM Extender - Set 19
Product Description
KVM (UHD@60Hz) Extenders/Matrix over IP. Based on standard Gigabit Ethernet
4K UHD KVM Fiber/Copper Extenders over IP
Key Features
- Based on Gigabit Ethernet Technology (IGMP and Jumbo frame)
- Supports HDR 10/10+, HDCP 2.2/2.3, USB 2.0 over IP, and AES 265 encryption
- Low latency of 17 ms for 60Hz, 20 ms for 50Hz
- Transmitter has built-in HDMI looping input
- Supports up to 170 meters point to point extension with CAT6 cable in Copper Mode
- Supports up to 100 meters when used with a GigE switch in Copper Mode
- Supports up to 10 Km in Fiber Mode
- Supports HDMI inputs and output signals
- Supports point to point (Unicast), point to multi-point (Multicast) for Audio/Video distribution
- Receiver has 5 USB-A ports that supports HID, tablets, storage, etc. and one independent USB2.0 link
- Supports analog stereo audio in point to point mode. Both embedded HDMI as well as external stereo input
- Supports RS-232 communication between Tx and Rx
- Built-in web-page for configuration
- Connection manager software - KVM matrix control panel
- Supports resolutions up to UHD @ 60Hz
- Advanced EDID management functionality. Built-in EDID list or EDID from the display
- Built-in Scaler on the receivers
- Two Ethernet connections via RJ45 and SFP. When both are active, it can work as redundant network.
- Optional POE. POE and external adapter can also work as redundant power supplies
Product Code
Product Name
Add to Basket
Apantac CRESCENT 4K/UHD KVM Extender/Receiver - Set 19
KVM-IP-Tx-UHD-LF
4K@60 KVM over IP transmitter with Fiber and copper interface

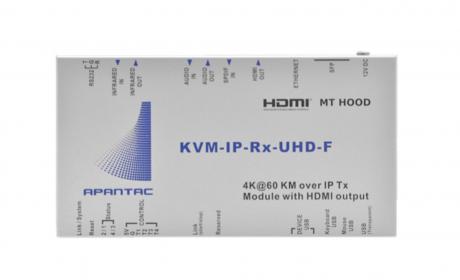

KVM-IP-Rx-UHD-F
4K@60Hz KVM over IP receiver with Fiber and copper interface
