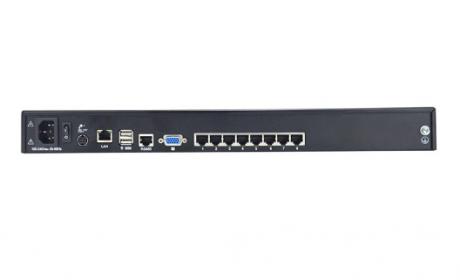

Kinan HT1808/HT1816/HT1824/HT1832 - 18.5″ 8/16/24/32-Port Cat5 LCD KVM over IP Switch 1-Local/1-Remote Access
Product Description
The IP-based KVM (IP-KVM) redirects the local keyboard, mouse and video data to a remote management console. The operator can safely manage one or many computers locally at the server site or remotely via a standard internet browser. Securely gain BIOS level access to systems for maintenance, support or failure recovery over the Internet.
The IP-KVM console integrates multiple KVM switches in a 1U height console. It can control multiple computers with a set of devices including monitor, keyboard and mouse; saving cost and space by consolidating the hardware to a single device.
The IP-KVM console is fast and easy to install. Simply connect corresponding cables to the correct ports of the KVM and its module without software configuration. Connect multiple computers with compact RJ-45 connectors and Cat5e/6/7 cables, transmitting distance is up to 100M.
Key Features
- Hardware: Equipped with an 18.5” LCD monitor with high definition and high resolution, a built-in keyboard and a touch pad, occupying only 1U rack space.
- Number of Computers: Up to 8 computers can be controlled from a single console.
- Remote Access: 1 local user and 1 remote user can be supported, and the port share mode allows the users to gain access to a server simultaneously.
- High Video Resolution: The max resolution of the local console is 1366 x 768@60Hz, and that of the remote console is 1920 x 1080@60Hz.
- EDID Function: Achieve video synchronization.
- Power Supply Redundancy: Make sure the switch is operating normally.
- Hot Pluggable: Add or remove servers without the need to power down the switch.
