AdderView Pro 4 port VGA Multi Screen (Dual, Triple & Quad head) KVM Switch
Product Description

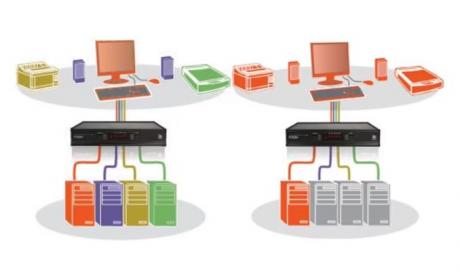

The AdderView Pro range of KVM switches allows single, dual triple and quad screen computers to be controlled from a single high resolution KVM console using high definition analogue VGA, DVI-I or DVI-D video links.
The switch makes use of Adder's True Emulation technology which enables USB HID devices to be continuously emulated to each computer. This unique technology enables instantaneous and reliable hotkey switching whilst also supporting the extra keys and features of enhanced keyboards and mice.
Furthermore, the AdderView includes two independently switchable USB 2.0 channels and an audio channel, giving the user the flexibility to attach selected peripherals to different computers.
Key Features
- Hardware compatibility: All computers with USB interfaces
- Software compatibility: Operates with all known software and operating systems including
- Windows (all), DOS, Linux, Unix, BSD, all Sun OS, all Mac OS, NetWare etc.

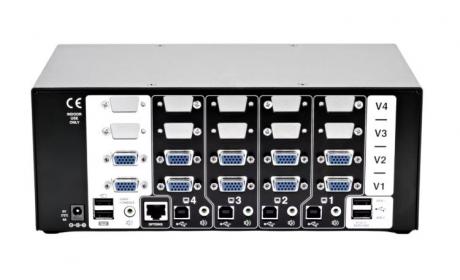

- Computer connections at switch: USB2.0 type B, Hi Res VGA, DVI-I, DVI-D (up to 4 per connection), 3.5mm stereo jack
- Local KVM console connection Video:
- Video: VGA, DVI-I, DVI-D (Dual x 2, Triple x 3 or Quad x 4)
- Keyboard/Mouse: 2 x USB type A
- Switched USB: 2 x USB2.0 type A
- Audio: 3.5mm stereo jack
- Other Connections: Options (flash upgrade, sync with other AV4PRO-VGA and RS232 triggered power switches): Modular 10P10C
- Physical design: 1U high metal case 233mm (w), 115mm (d), 44mm (h)
- Power : 2.5mm DC jack (power adapter included),100-240VAC 50/60Hz input to power adapter, 5VDC 2A output from power adapter
- Operating temperature: 0 degC to 40 degC / 32 degF to 104 degF
- Approvals: CE, FCC
