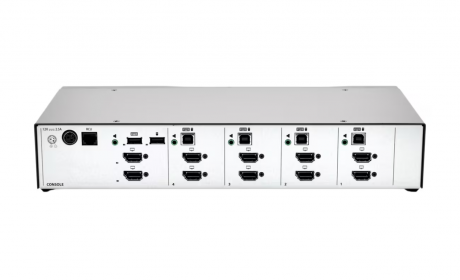

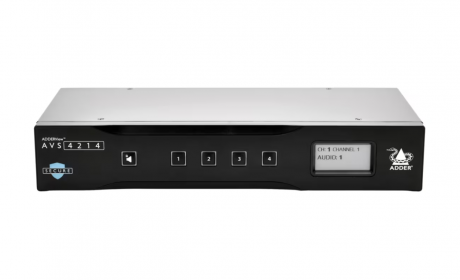

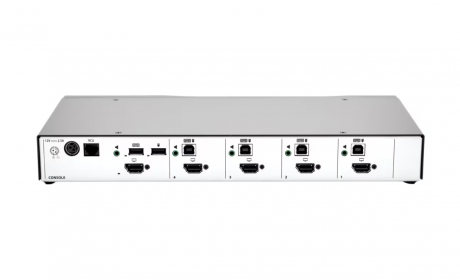

ADDERView AVS 4114/4214 4-port DP/HDMI 4K Secure KVM Switch
Product Description
ADDERView Secure switches enable a KVM plus audio desktop to be shared between different classification level computers. Designed for superior usability, the switches feature configurable LED buttons and a real-time status display.
Key Features
- No Shared RAM Between Ports: The keyboard and mouse processor is powered down and reset at each switchover to thwart shared RAM leakages. All data buffers are actively cleared once they have been used.
- Automatic Switching (Config Option): Switch channels (KVM plus audio) simply by moving the mouse across the screen border, whilst pressing the Ctrl key.
- Hardware Anti-Tampering: Holographic anti-tampering labels protect the product’s enclosure, providing a clear visual indication if it has been opened or compromised.
- Restricted USB Function: The USB ports will only accept HID (Human Interface Devices), such as keyboards and mice. Other devices, such as USB storage drives, are actively prohibited.
- Audio Hold: Assign the audio port to a specific computer while switching the KVM to other computers. Useful when a user needs to listen to audio from one computer, whilst working on another.
- Uni-Directional Audio: Enforces computer-to-speaker, one-way flow of sound through uni-directional optical data diodes. Prevents eavesdropping and line-in re-tasking by blocking speaker-to-computer communication.
- Industry Recognized: NIAP PP 4.0 Certified, TAA Compliant, Assembled in the USA
- Windows, Linux, Mac host computer OS’s USB HID, including touchscreens compliant with Microsoft Digitizer.
- CE, FCC class A, TUV US & Canada
- NIAP PP 4.0 Compliant Design for Peripheral Sharing Devices (PSD)
- Up to UHD 4K video resolution at 60 fps for graphics intensive applications requiring very high quality.
- Non-reprogrammable firmware: There is no access to the product’s firmware or memory through any port. Firmware is permanently stored in non-reprogrammable Read Only Memory (ROM) to prevent modification. Firmware integrity is verified through a self-test procedure during power up. Detection of a critical failure disables the device and provides a clear visual indication to the user.
Product Code
Product Name
Add to Basket
ADDER 4-port DP/HDMI 4K/60 Secure KVM Switch
ADDERView AVS 4114
AdderView Secure 4-port DP/HDMI 4K/60 Single Head
ADDERView AVS 4214
AdderView Secure 4-port DP/HDMI 4K/60 Dual Head
