Aten KL1508Ai

Get a Quote
Manufacturer
Produced In
Taiwan
Download Aten KL1507Ai Data Sheet

Product Description

The Aten KL1508Ai Dual Rail LCD KVM Switch is a control unit that allows secure access to 8 computers from a single KVM (keyboard, video, and mouse) console. It consists of an integrated 17 or 19 inch LCD monitor, keyboard, and touchpad mouse in a 1U rack-mountable retractable sliding housing.

VGA, DVI, HDMI & DisplayPort with PS/2 and USB control support

The LCD and keyboard/touchpad modules slide independently of each other. To maximize space in your data center, the keyboard/touchpad module slides back to “ hide away ” when not in use, while the thin profile LCD monitor rotates back – flush against the rack – allowing convenient monitoring of computer activity.

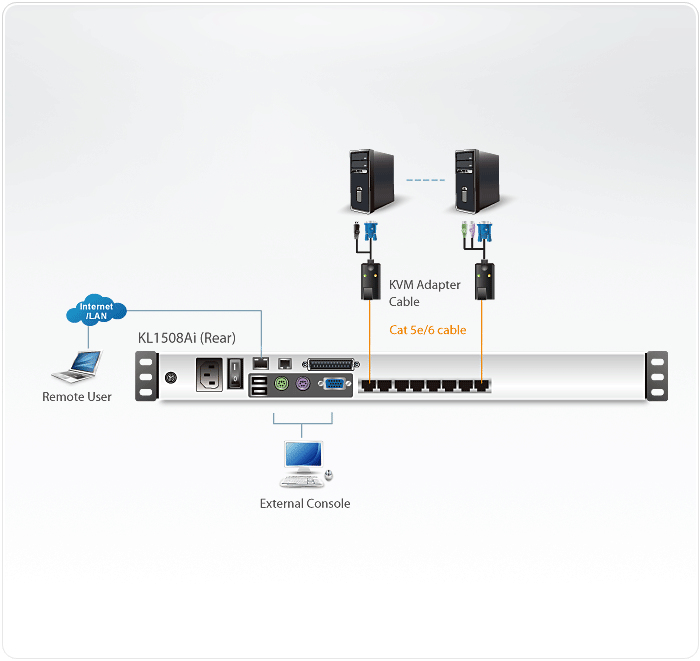

The KL1508Ai features IP-based connectivity that allows local and remote operators to monitor and access the computers on your installation. Because it uses TCP/IP for its communications protocol, the KL1508Ai can be accessed from any computer on the LAN, WAN, or Internet – whether that computer is located down the hall, down the street, or halfway around the world.

Key Features

  • Integrated KVM console with 17 or 19 inch screen keyboard & mouse
  • A single console controls up to 8 computers
  • Daisy chain up to 15 additional KVM switches to control up to 128 computers*
  • One bus for remote KVM over IP access
  • Space-saving RJ-45 connectors and Cat 5e/6 cabling
  • KVM adapter cables designed with automatic conversion to allow flexible interface combinations (PS/2, USB, Sun and serial) to control all computer types
  • Extra console port manage computers in the LCD KVM switch from an external console (monitor, USB or PS/2 keyboard, and USB or PS/2 mouse)
  • Multiplatform support: PC, Mac, Sun and Serial
  • Supports external USB mouse
  • Dual Rail housing is slightly less than 1U with top and bottom clearance for smooth operation in 1U of rack space
  • Dual Rail 17“ or 19" LCD monitor slides independently of the keyboard/touchpad
  • LCD module rotates up to 120 degrees for a more comfortable viewing angle
  • Console lock enables the console drawer to remain securely locked away in position when not in use
  • LCD power button helps save energy and prolong display life
  • Up to 64 user accounts up to 32 concurrent remote logins
  • End session feature administrators can terminate any running session
  • Adapter ID stores port information allowing administrators to relocate servers to different ports, without having to reconfigure the adapters and switch
  • Port Share Mode allows multiple users to gain access to a server simultaneously
  • Event logging and Windows-based Log Server support
  • Firmware upgradeable
  • IPv6 capable
  • Easy computer selection via pushbuttons, Hotkey Mode, OSD (OnScreen Display), and Browser-based GUI
  • Local Console, Browser, and AP GUIs offer a unified multi language interface to minimize user training time and increase productivity
  • Multiplatform client support (Windows, Mac OS X, Linux, Sun)
  • Multi-browser support: Internet Explorer, Chrome, Firefox, Safari, Opera, Mozilla, Netscape
  • Browser-based UI in pure Web technology allows administrators to perform administrative tasks without the need for Java to be pre-installed
  • Keyboard broadcast keyboard input can be duplicated on all the attached servers
  • Remote authentication support: RADIUS, LDAP, LDAPS, and MS Active Directory
  • 128-bit SSL encryption to protect password when users log in
  • Flexible encryption design allows users to choose any combination of 56-bit DES, 168-bit 3DES 256-bit AES, 128-bit RC4, or Random for independent KB/Mouse, and video data encryption
  • Configurable user and group permissions for server access and control
  • Virtual Remote Desktop
  • Video quality and video tolerance can be adjusted to optimize data transfer speed; monochrome color depth setting, threshold and noise settings for compression of the data bandwidth in low bandwidth situations
  • Message board feature allows logged in users to communicate with each other
  • BIOS-level access

Product Code

Product Name

Add to Basket

Aten KL1508Ai 17" or 19" Dual Rail Rack mount console with keyboard and mouse & integrated 8 port KVM switch over IP.
KL1508AiM
17" Rack Console with integrated 8 port KVM switch over IP

KL1508AiN
19" Rack Console with integrated 8 port KVM switch over IP
