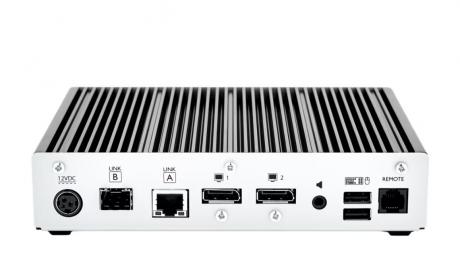

ADDERLink XD612 DisplayPort Single or Dual Head KVM Extender
Manufacturer
Produced In
United Kingdom
Product Description
High performance KVMA extender that is designed to provide reliable and real-time access to critical computers - regardless of the location, while maintaining the same user desktop user experience
Key Features
- Dual-Head High-Definition Video - Supports resolutions up to 1920x1200@60Hz with 24-bit colour and 4:4:4 chroma. Dual-head enabled over a single cable using DisplayPort 1.2 Multi-Stream Transport (MST) technology
- Up to 4km Extension - Supports both copper and fiber interfaces. Provides a range of up to 100m/328ft over a CAT6 cable link, and up to 4km/2.5 miles over an optical fiber link (Fiber SFP modules sold seperately)
- Emulated USB 2.0 - Emulation ensures reliable connection of up to four full and low speed HID devices, from mouse and keyboards through to graphics tablets and jog shuttles
- Plug and Play - Uses a low-latency point-to-point protocol over a single CATx or fiber cable that works as soon as it is connected. No network set-up, driver or software is required
- Digital Audio over DisplayPort - Supports two channels of 24-bit, 192kHz sampled PCM audio over the DisplayPort connection
- Analog Audio - Plug analog line in/out and headphones directly into the receiver. Audio is transmitted as bi-directional stereo 24-bit/96kHz using either an analog or USB connection to the host
- Monitor Flexibility - EDID management allows the monitor capabilities to be passed back to the host computer for optimum compatability. Additionally, a local monitor may be connected at the transmitter side
- Serial communications - RS232 can be passed between the units to a maximum rate of 115200 baud with RTS/CTS flow control
Product Code
Product Name
Add to Basket
ADDERLink XD612 DisplayPort Single or Dual Head KVM Extender
XD612P-DP
ADDERLink XD612 DisplayPort Single or Dual Head KVM Extender
